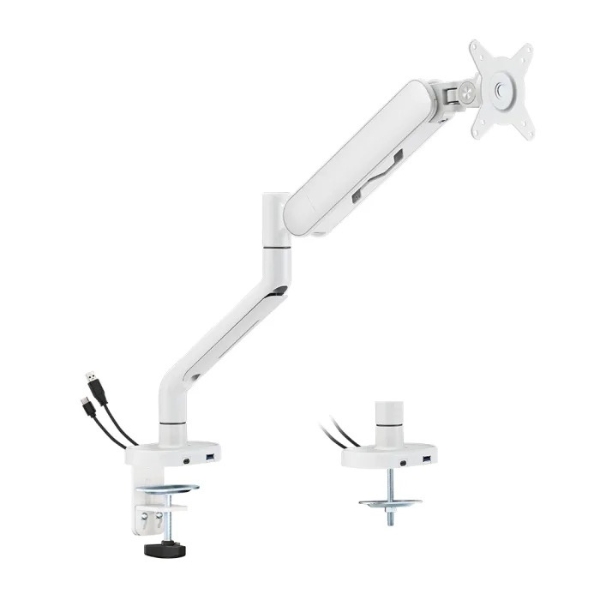

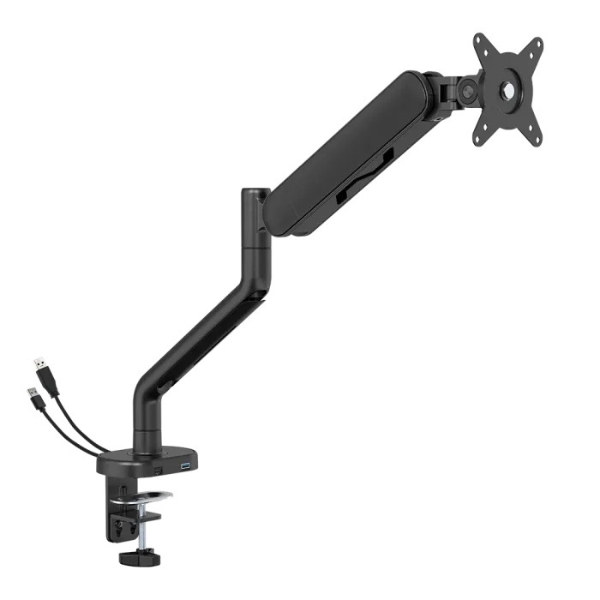

ZL Series

SKU: ZL1-2 Category:
GSA Image


The ZL Series features a chic and elegant design while giving you the ergonomic features you need. Available in white and black arm finishes . All models include an Integrated Smart Base with USB-A and USB-C connectors for charging or connecting to other devices. Easily adjust the monitor to fit your comfort with tilt, rotation, and swivel functions providing flexibility for optimal viewing angles. Without sacrificing functionality, it allows for easy installation with quick-release VESA plates and an intuitive spring tension adjustment gauge.

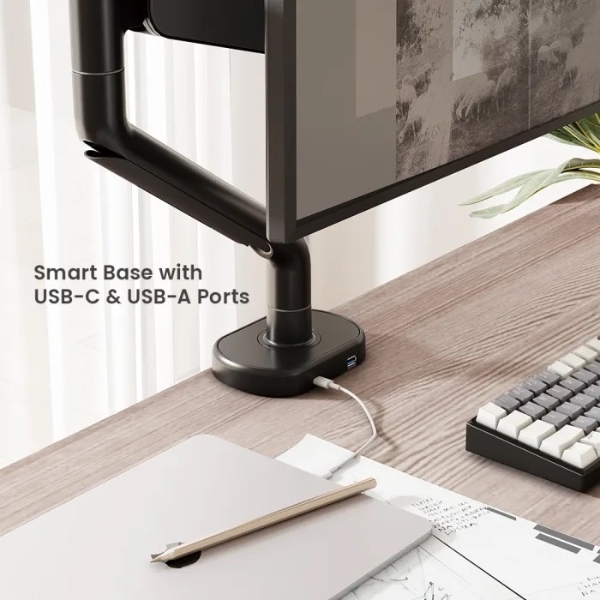

  • Integrated Smart Base: USB connectivity and charging all-in-one
  • Spring-Assisted Mechanism: allows to easily move up and down
  • Built-in Spring Tension Mechanism: for perfect weight adjustments

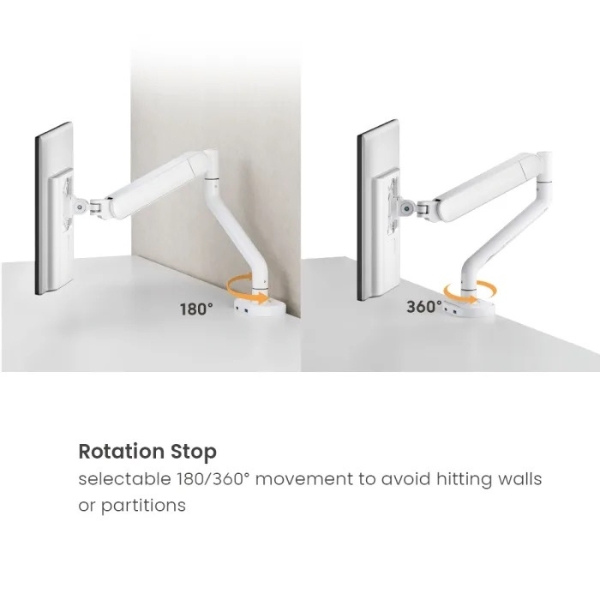

  • 180° Rotation Stop: keeps monitors exactly where you want them
  • Fully Concealed Cable Management: organize all monitor cables end-to-end
  • Material – Aluminum, Plastic, Steel
  • Surface Finish – Powder Coating
  • Material: Aluminum, Plastic, Steel
  • Surface Finish: Powder Coating
  • Color: White or Black
  • Dimensions: 133x630x635mm (5.2″x24.8″x25″)

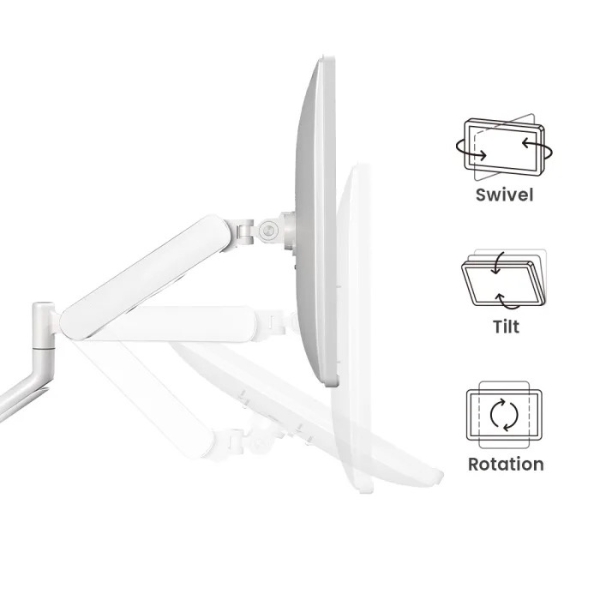

  • Tilt Range: +80°~-90°
  • Swivel Range: +90°~-90°
  • Screen Rotation: +180°~-180°
  • Arm Full Extension: 542mm (21.3″)
  • Installation: Clamp, Grommet Suggested Desktop Thickness Clamp:10~85mm Grommet:10~80mm (Clamp:0.39″~3.3″ Grommet:0.39″~3.1″)

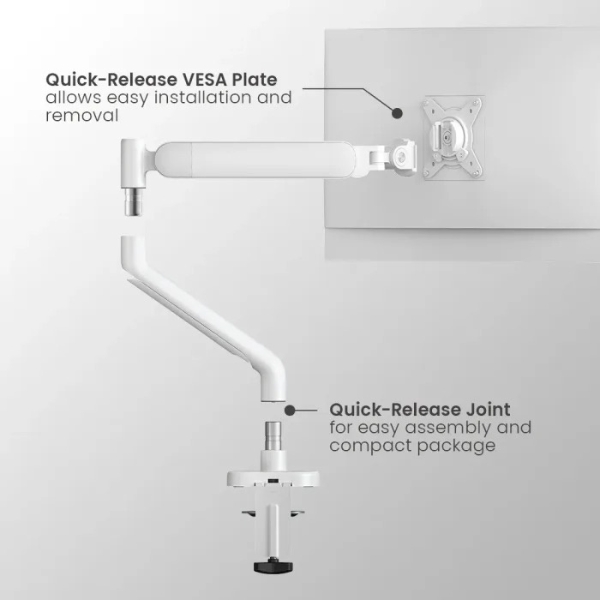

  • Quick Release VESA Plate: Yes
  • USB Port: 1xTYPE-C, 1xUSB 3.0 Port
  • Cable Management: Yes
  • Weight Capacity (per screen): 2~11kg (4.4lbs~24.2lbs)

Additional information

Arm Style

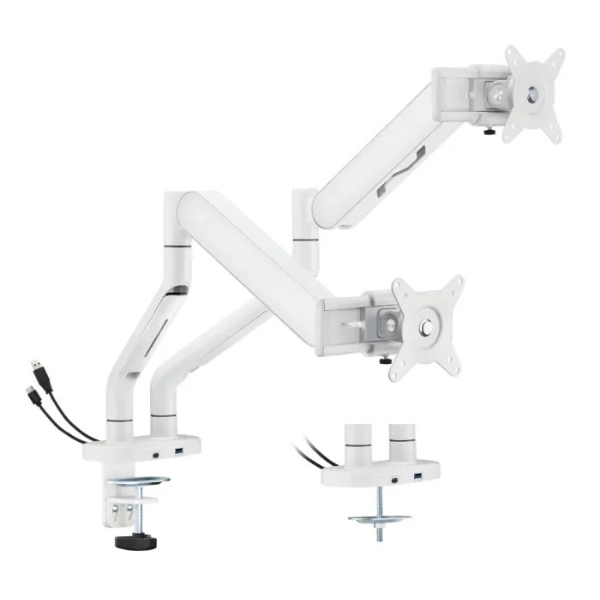

Single Arm, Dual Arm



Country Manufactured In

On GSA Contract
